Grating Fastener Disc Galvanised, Powder Coated
- Geomet coated, equivalent to 67.5µm hot dipped galvanised
- 720 hours salt spray resistance before the appearance of red rust
- Powder coated RAL 1016 sulphur yellow for high visibility
- An alternative to Hilti X-FCM-F grating fastener disc duplex coated (440 hours salt spray resistance)
- Suitable for use with all M8 threaded studs
Features
- Geomet coated disc, equivalent to 67.5µm hot dipped galvanised
- Powder coated RAL 1016 sulphur yellow for high visibility
- 720 hours salt spray resistance before the appearance of red rust
- Locking tabs on the disc helps to prevent self loosening
- Non slip disc surface
- Cordless solution
- An alternative to Hilti X-FCM-F grating fastener disc duplex coated (440 hours salt spray resistance)
- Suitable for use with all M8 threaded studs
Applications
- Grating fastener disc for use with M8 threaded stud in corrosive environments
- Fastening grating with thicknesses of 25 to 40mm as standard
- Use GRATEX extension to fix grating in excess of 40mm
Item code Shank length Head diameter Grid thickness GRATF25G-HV 22.8mm 52mm 25mm GRATF30G-HV 27.8mm 52mm 30mm GRATF40G-HV 37.8mm 52mm 40mm
Click here for grating fastener dimension drawings :
Enquire Buy Now Contact
MORE INFORMATION
- APPLICATIONS
- DOWNLOADS
-

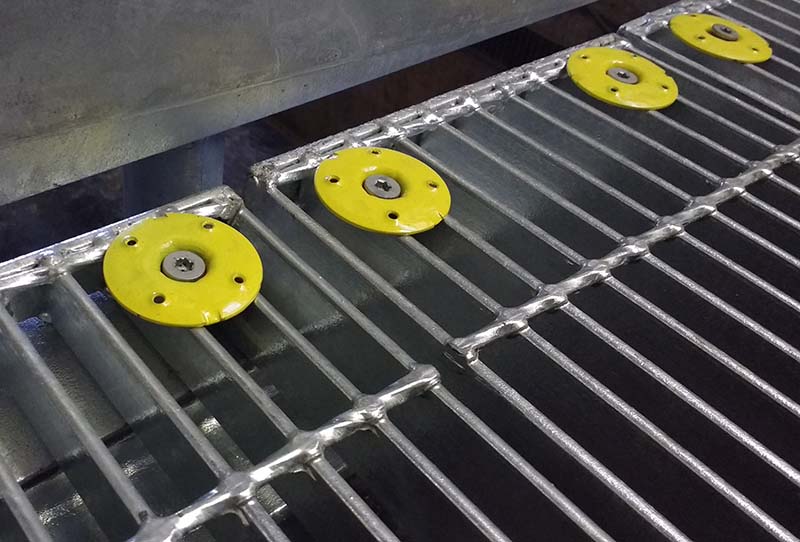

GRATFG-HV used at Thames Water
Latest installation using GRATF-G-HV galvanised powder coated grating fasteners at Thames Water WwTW site.
